DCC SPEAKERS

O & OO Gauge Speakers

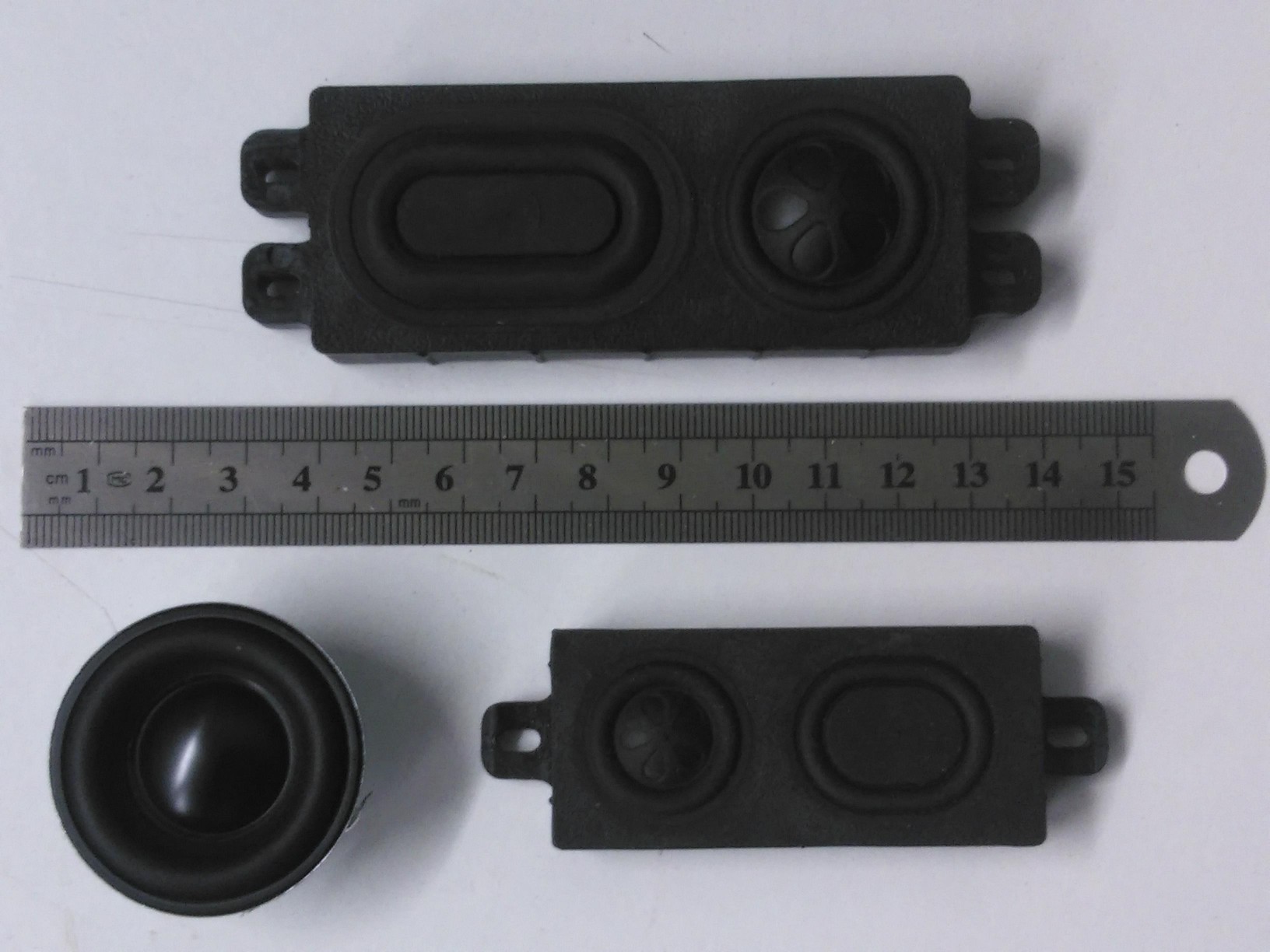

Type 1 top, type 2 bottom left, type 3 bottom right. These are our prefered speakers giving the best sound & bass.



Type 1 (exclusive to us), 37x108x20mm, 4W RMS max, 105Hz to 20KHz. 4 Ohm. 31mm driver with passive radiator. By far the best speaker for bass frequency response. Will fit in Heljan Class 47 & 50. £30

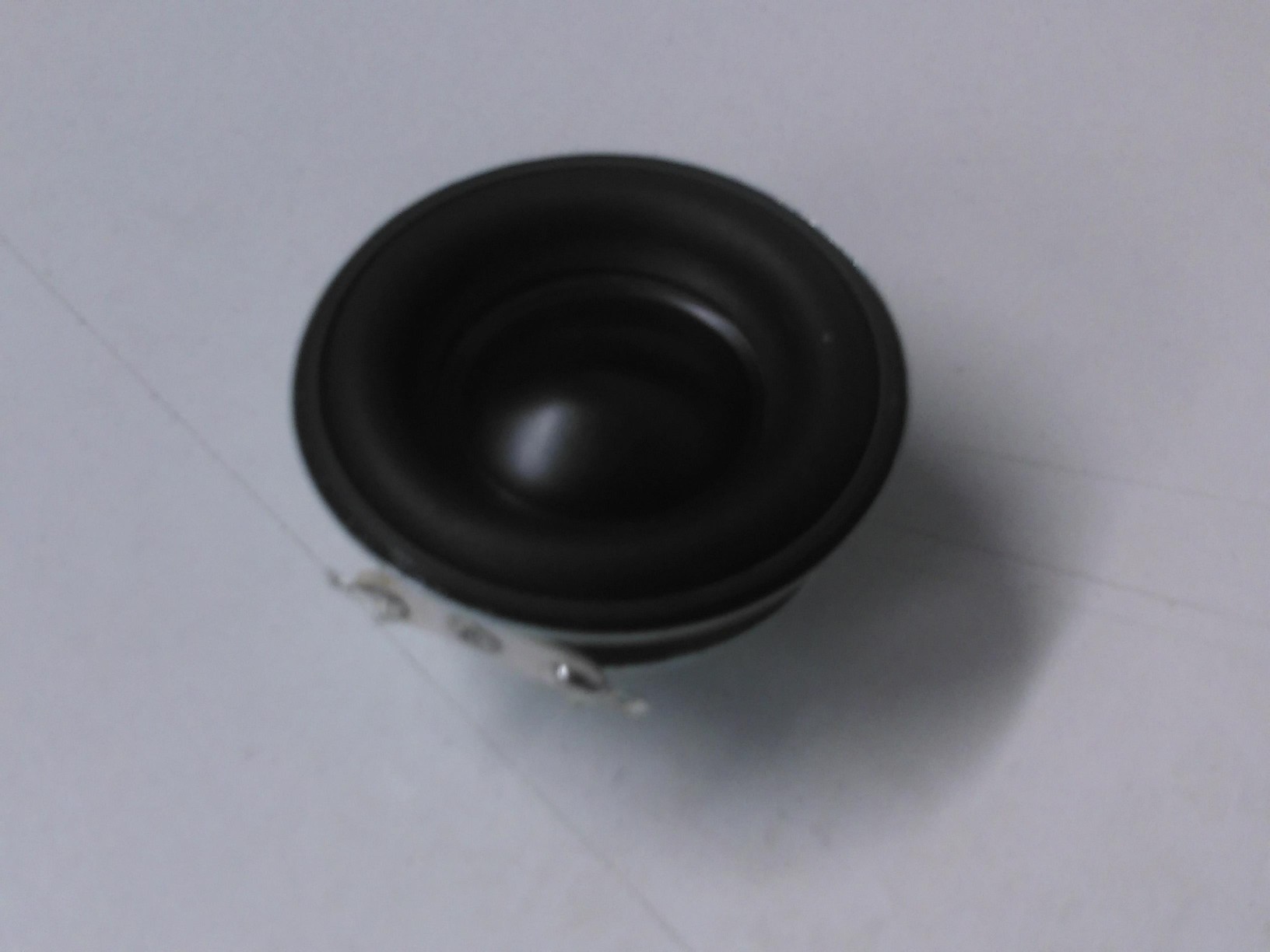

Type 2 40mm diameter, 5W RMS max, 4 Ohm. The loudest speaker but has poor bass response unless fitted in an enclousure. The only option for the Heljan Class 40, as Type 1 & 3 will not fit. £20



Type 3 ESU 50343 29x65x14mm, 2W RMS max, 150Hz to 20KHz. 4 Ohm. 25mm driver with passive radiator. The best speaker for OO gauge if you can fit it in! A great all round speaker with excellent bass for its size. Can be used in all O Gauge Heljan diesel except the class 40. Two of these can be fitted in the 37 and 50. £18

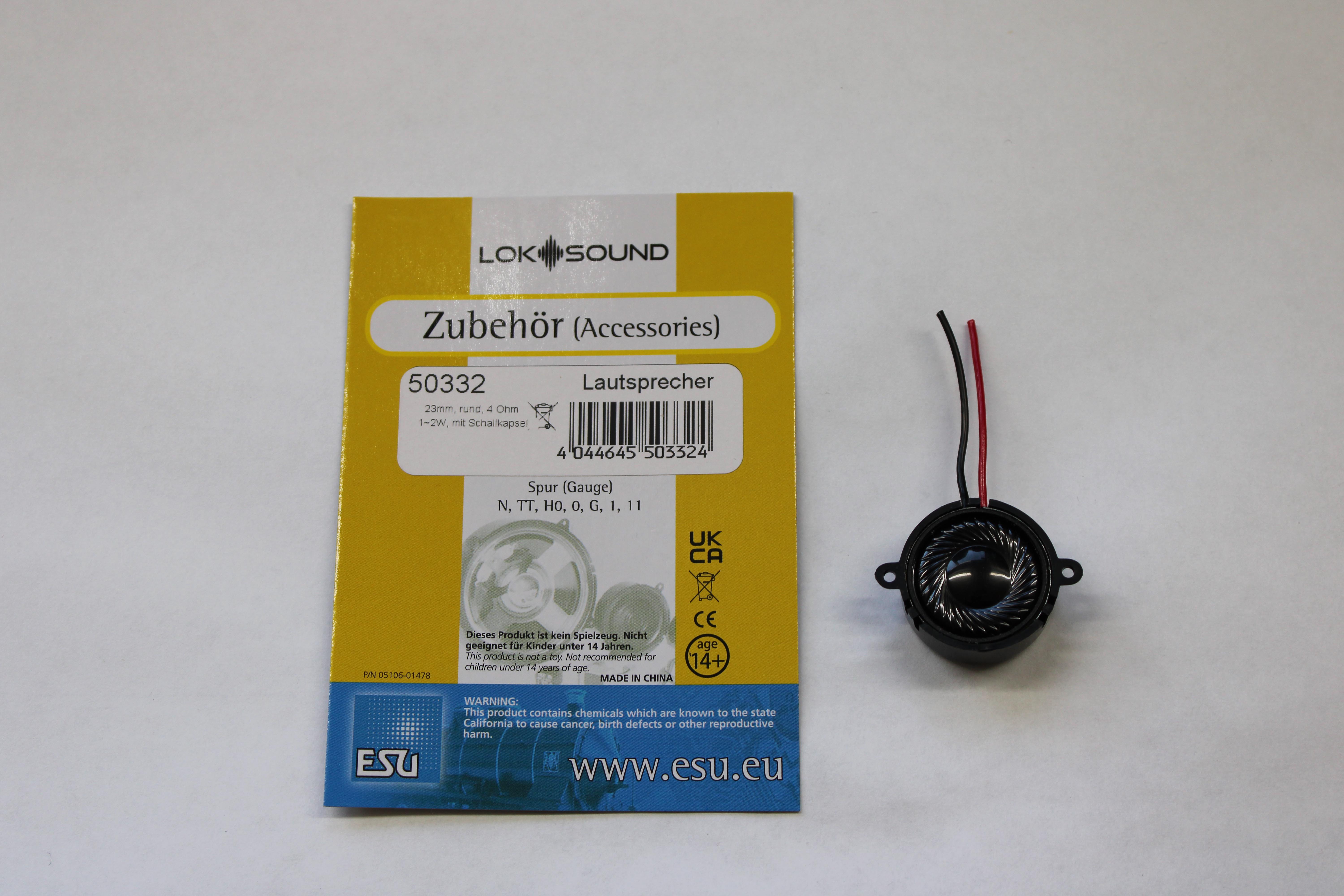

Type 4, ESU 50332 23mm 4 Ohm with sound chamber 1W RMS Our price £8

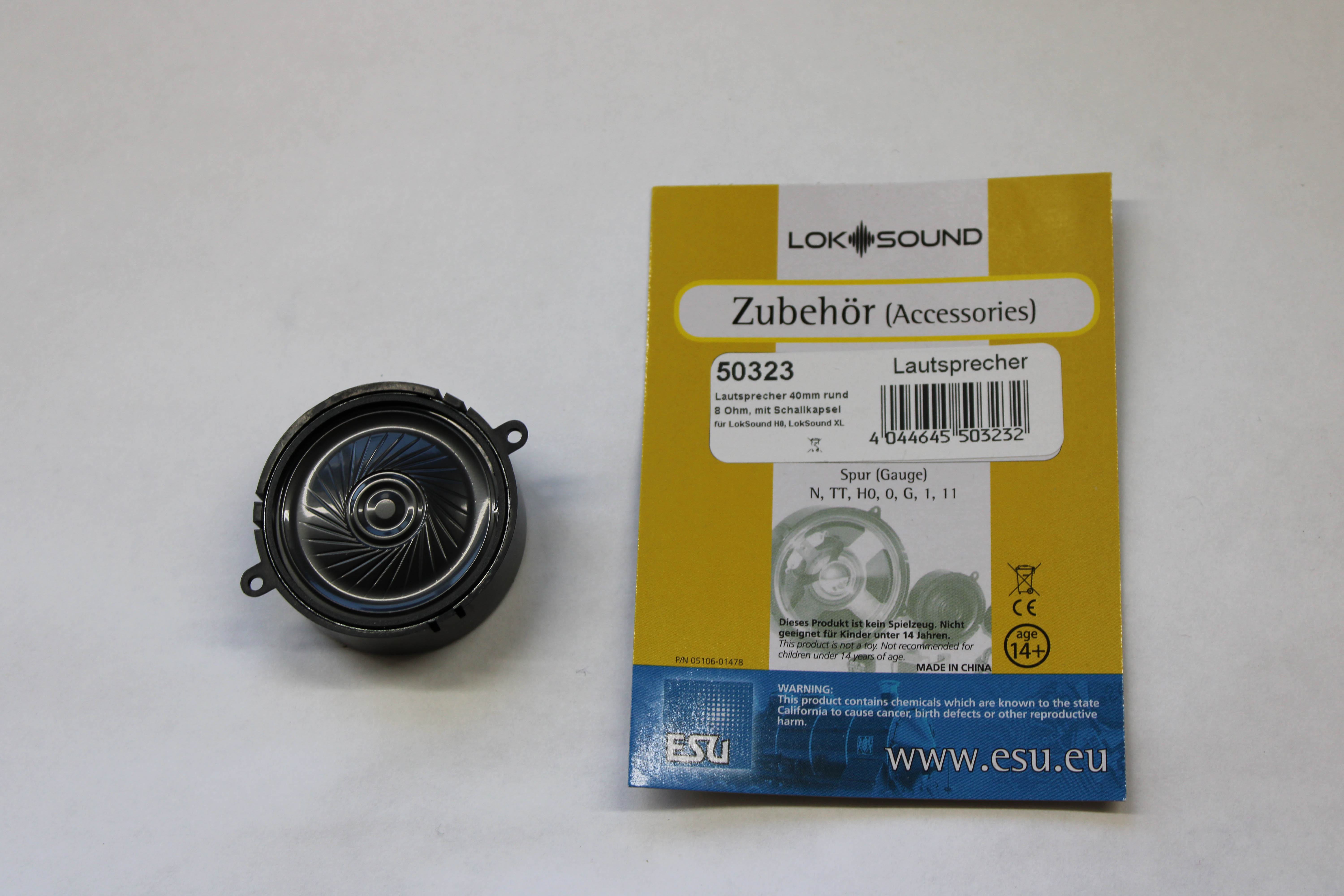

Type 5 ESU 50323 40mm with sound chamber 8 Ohm 2W RMS our price £12

Free delivery on all orders over £200, otherwise delivery is £5
