ZX2 HIGH POWER THERAPEUTIC LASER

If you are a professional electrotherapy or laser user and ready for a step up to the latest technology, then the ZX2 laser, manufactured by LZR7, is the product you have been waiting for...

The recent trend in laser therapy is for much higher powers as it gives much faster and more effective results than many of the low powered products currently on offer by other manufacturers.

Some Class 4 devices on sale, are too high powered and as such, are not that therapeutic. Some are approaching surgical power densities and are more likely to burn than heal. At the other end of the spectrum, if you are currently using a laser therapy device with power outputs below 2000mW you will be quite amazed at the results from this device. The ZX2 is the ideal balance between low and high power and is really the only device currently on the market that achieves this perfect balance and was developed over the last 3 years by a team with over 35 years experience in the laser therapy industry.

Fully adjustable power output allows the intensity to be turned down for sensitive skin types. Unique to the ZX2 is programable tissue depth. Dosage in Joules or J/Cm2 is then automatically calculated for the set tissue depth, power setting and probe type.


- Certified to the latest IEC60601-1 Edition 3 standard for medical equipment
- User controlled treatment times selectable between 5 seconds and 10 minutes
- Dual outputs. Allows practitioners to treat two patients at the same time
- Probe Choices - 808nm single and multi-probes up to 6100mW, plus 904nm
- Fully adjustable power output
- LCD display showing total joules and J/Cm2
- Programmable tissue depth
- High quality professional product
- 3 year European warranty

please contact us for further details and pricing

Probe Specifications

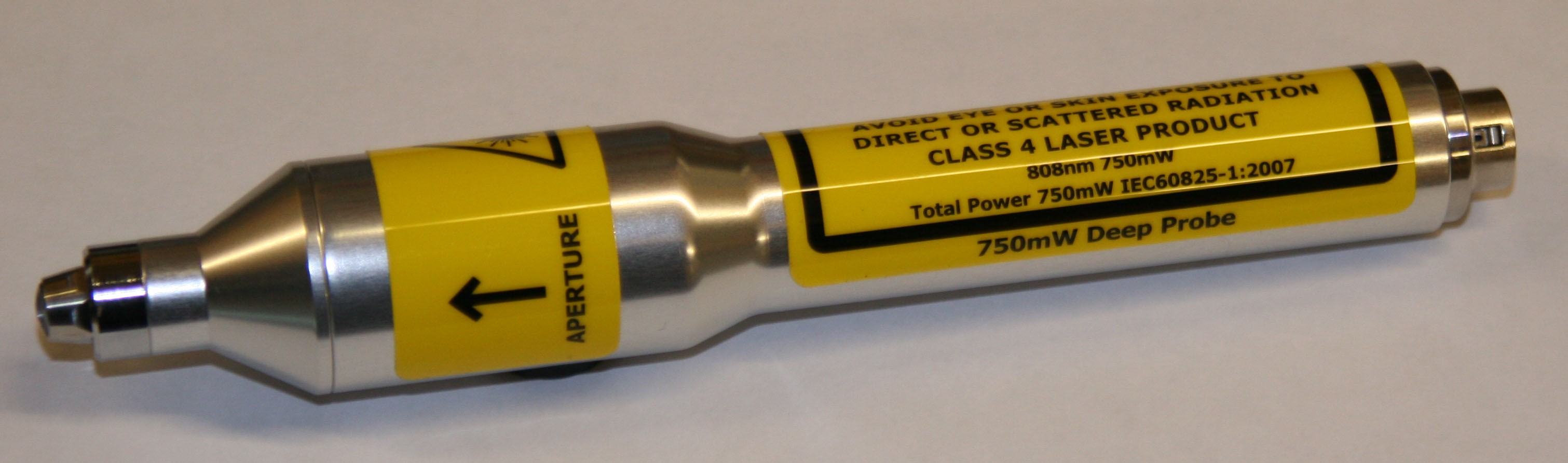

750mW Accutip Probe



Type                                                                              CW Single Point
Application                                                                     Laser acupuncture, Joints, Trigger Points
Total Max Power Output with lens                                 750mW
Typical power at end of Accutip                                    .400mW
No. of Laser Diodes                                                       1
Wavelength                                                                   808nm
Aperture                                                                         6mm
Laser Classification                                                        Class 4
NOHD*                                                                            90Cm, 3ft
Safety goggle requirement                                             OD3 minimum @ 808nm
Treatment Time for 4 J/Cm2                                            9.4 seconds
Total Energy delivery per minute                                   .24 Joules, 85.8 J/Cm2
Emitter Type                                                                    Ga Al As Semiconductor Laser
Beam Divergence                                                            5º x 12º
Spot Size                                                                         0.28Cm2
  Power Density (Irradiance)                                           1.43W/Cm2 (13,300Wm-2)

* Nominal Ocular Hazard Distance

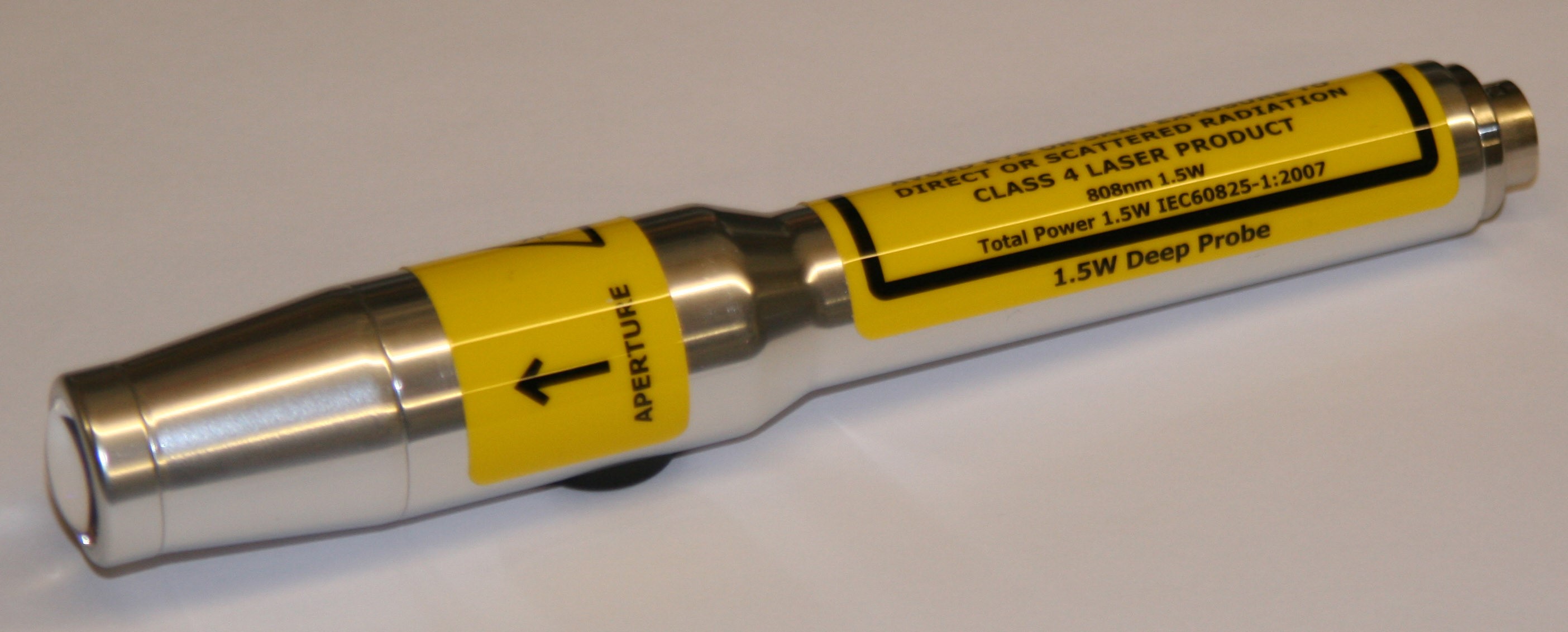

1.5W Deep Probe

Type                                                                               CW Single Point
Application                                                                      Analgesia Inflammation, Tissue Repair, Joints, Trigger                                                                                        Points, Deeper Tissues
Total Maximum Power Output                                       .1.5W
No. of Laser Diodes                                                        1
Wavelength                                                                    808nm
Aperture                                                                         15mm
Laser Classification                                                        Class 4
NOHD*                                                                            150Cm, 5ft
Safety goggle requirement                                             OD3 minimum @ 808nm
Treatment Time for 4 J/Cm2                                             4.7 seconds
Total Energy delivery per minute                                   .90 Joules, 51 J/Cm2
Emitter Type                                                                    Ga Al As Semiconductor Laser
Beam Divergence                                                            5º x 12º
Spot Size                                                                         1.76Cm2
Power Density (Irradiance)                                             0.85W/Cm2 (8,500Wm-2)

* Nominal Ocular Hazard Distance

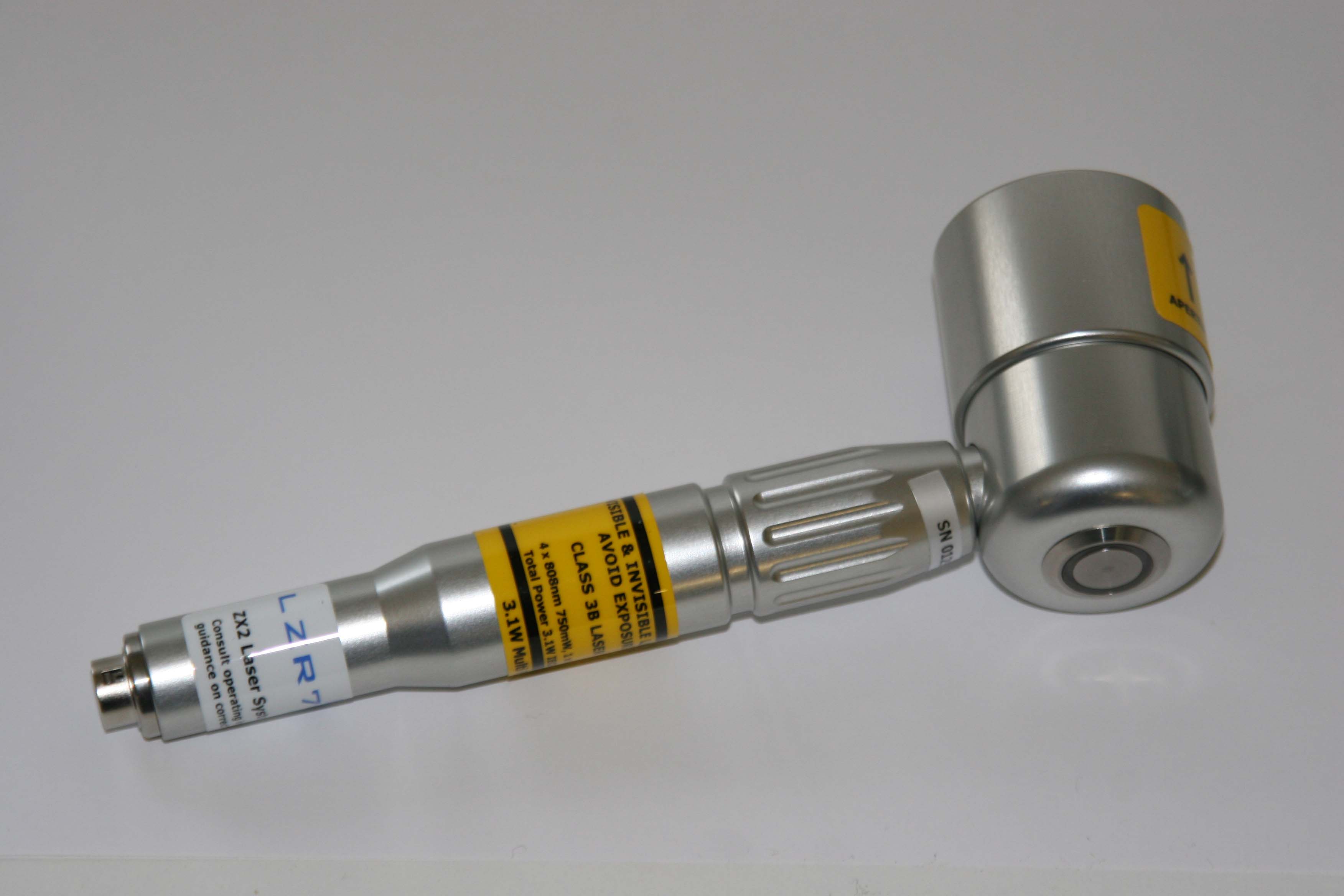

3.1W Multi Probe

Type                                                                                CW Large area Multi
Application                                                                      Analgesia Inflammation, Tissue Repair, Large Areas
Total Maximum Power Output                                       ..3.1W
No. of Laser Diodes                                                         5
Wavelength                                                                     658nm x1 & 808nm x 4
Aperture                                                                          25mm
Laser Classification                                                       ..Class 3B
NOHD*                                                                            150Cm, 5ft
Safety goggle requirement                                             OD3 minimum @ 808nm and 658nm
Treatment Time for 4 J/Cm2                                            12.4 seconds
Total Energy delivery per minute                                   183 Joules, 19.25 J/Cm2
Spot Size                                                                         9.35Cm2
Power Density (Irradiance)                                             0.321W/Cm2 (3,210Wm-2)
658nm Emitter
Emitter Type:                                                                   Ga Al In P Semiconductor Laser
Beam Divergence                                                            9.5º x 17º
Maximum Output Power                                                 100mW
808nm Emitter
Beam Divergence                                                            8º x 30º
Maximum Output Power                                                 750mW

* Nominal Ocular Hazard Distance

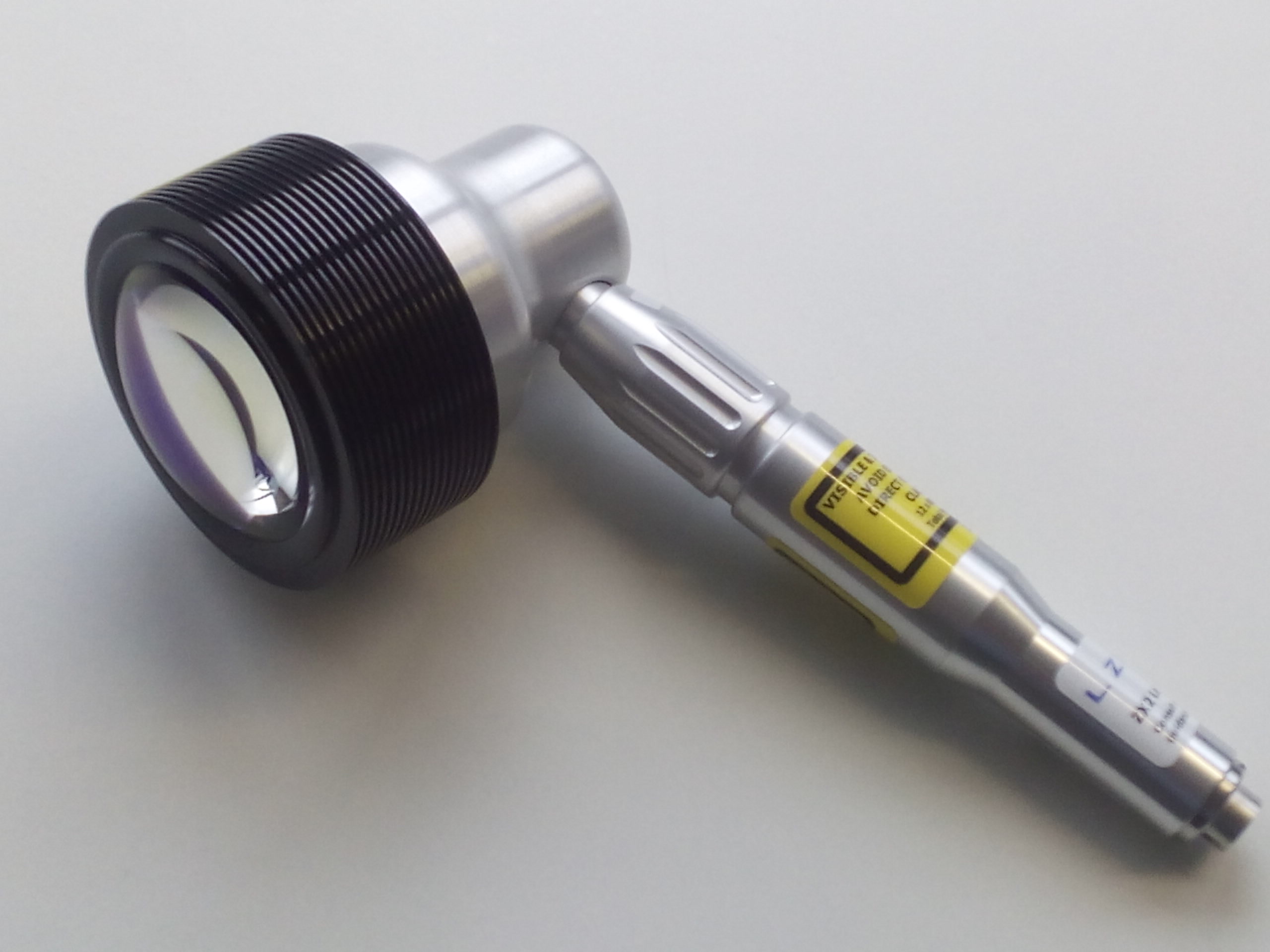

6.1W Multi Probe

probe

Type                                                                                CW Large area Multi
Application                                                                      Analgesia Inflammation, Tissue Repair, Large Areas
Total Maximum Power Output                                       ..6.1W
No. of Laser Diodes                                                         5
Wavelength                                                                     658nm x1 & 808nm x 4
Aperture                                                                          25mm
Laser Classification                                                       ..Class 4
NOHD*                                                                            150Cm, 5ft
Safety goggle requirement                                             OD3 minimum @ 808nm and 658nm
Treatment Time for 4 J/Cm2                                            6.2 seconds
Total Energy delivery per minute                                   366 Joules, 38.5 J/Cm2
Spot Size                                                                         9.35Cm2
Power Density (Irradiance)                                             0.642W/Cm2 (6,420Wm-2)
658nm Emitter
Emitter Type:                                                                   Ga Al In P Semiconductor Laser
Beam Divergence                                                            9.5º x 17º
Maximum Output Power                                                 100mW
808nm Emitter
Beam Divergence                                                            8º x 30º
Maximum Output Power                                                 1.5W

* Nominal Ocular Hazard Distance

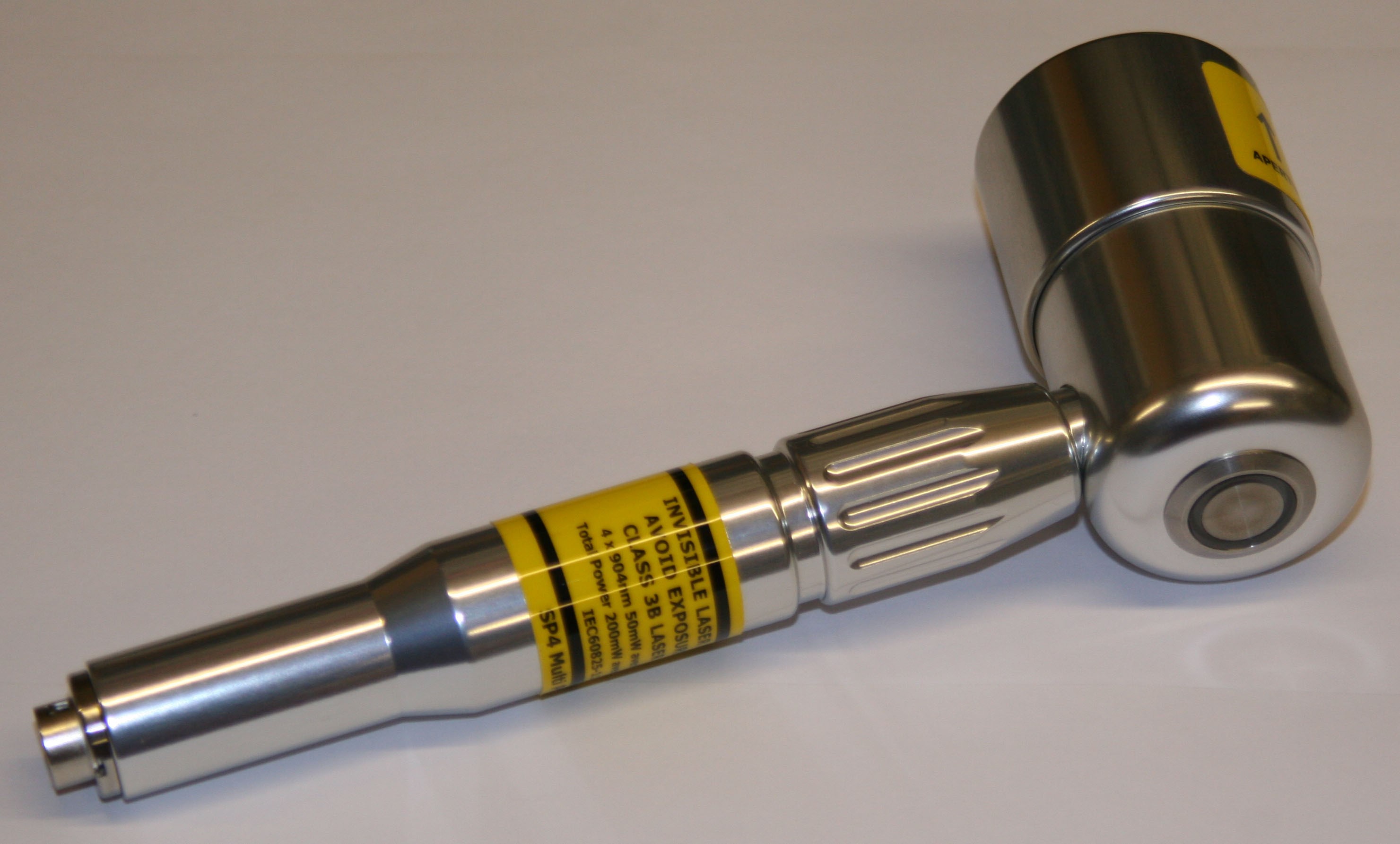

SP4 Super Pulsed 904nm Multi Probe

Type                                                                               Super Pulsed at 100KHz
Application                                                                      Inflammation, Deepest Penetration
Total Maximum Power Output                                       .100W peak, 200mW Average
No. of Laser Diodes                                                        4
Wavelength                                                                    904nm x 4
Aperture                                                                         25mm
Laser Classification                                                        Class 3B
NOHD*                                                                            30Cm, 1ft
Safety goggle requirement                                             OD3 minimum @ 808nm
Treatment Time for 4 J/Cm2                                            22.7 seconds
Total Energy delivery per minute                                   12 Joules, 10.5 J/Cm2
Emitter Type                                                                    Ga As Semiconductor Laser Pulsed
Beam Divergence                                                            9º x 38º
Spot Size                                                                         0.28Cm2
Power Density (Irradiance)                                             0.176W/Cm2 (1,760Wm-2)

* Nominal Ocular Hazard Distance
